Product Overview

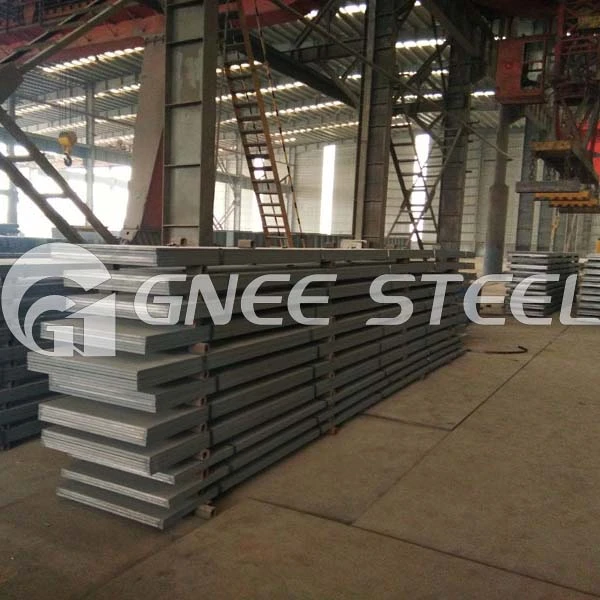

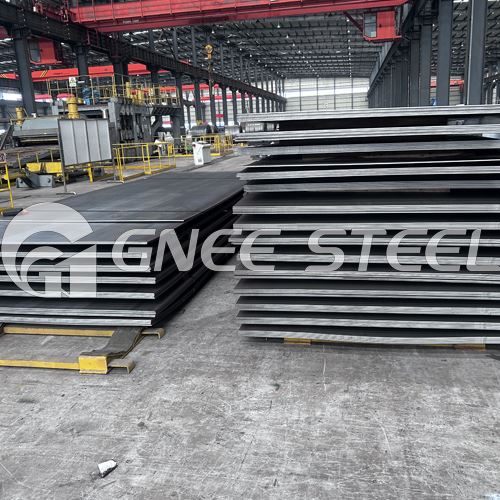

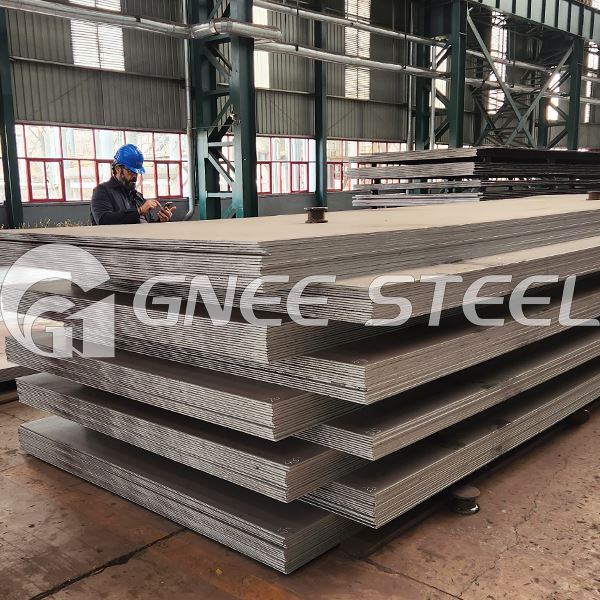

ASTM A515 Qib 60, Qib 65 & Qib 70 Hlau Phaj yog cov pa roj carbon steel siab nkoj phaj tsim los rau ASTM A515 / ASME SA515 cov qauv rau kev pabcuam nruab nrab thiab siab kub. Nws muab kev ruaj ntseg zog, weldability, thiab qhov ntev stability rau boilers, siab hlab ntsha, tshav kub exchangers, thiab industrial txheej txheem khoom.

Technical Specifications

Yam khoom	Specification
Qib khoom	ASTM A515 Qib 60 / Qib 65 / Qib 70
Txuj	ASTM A515 / ASME SA515
Thickness	6-300 hli
Dav	1,000–4,000 mm
Ntev	3,000–18,000 mm
Kev Xa Khoom	Raws li Rolled (AR), Normalized (N), Normalized Rolled (NR) raws li kev thov
Ntug Hom	Mill Edge (ME), Trimmed Edge (TE)
Surface condition	Kub Rolled, Txhaj Blasted & Painted raws li kev thov

Tshuaj muaj pes tsawg leeg

ASTM A515 Siab Vessel Phaj
Element		Gr . 60	Gr . 65	Gr . 70
C max	t Tsawg dua los yog sib npaug rau 1 "	0.24	0.28	0.31
	1"< t ≤2"	0.27	0.31	0.33
	2"< t ≤4"	0.29	0.33	0.35
	4"< t ≤8"	0.31	0.33	0.35
	t>8"	0.31	0.33	0.35
Mn max	*H.A.	0.90	0.90	1.20
Mn max	*P.A.	0.98	0.98	1.30
P	max	0.025	0.025	0.025
S	max	0.025	0.025	0.025
Si	*H.A.	0.15–0.40	0.15–0.40	0.15–0.40
Si	*P.A.	0.13–0.45	0.13–0.45	0.13–0.45

Mechanical Properties

ASTM A515 Cov Lus Qhia Tshwj Xeeb	T.S. MPa* [ksi]	Y.S. MPa* [ksi]	EL. 8" min. %*	EL. 2" min. %*
Qib 60	415–550 [60–80]	Ntau tshaj los yog sib npaug rau 220 [Ntau dua lossis sib npaug rau 32]	21	25
Qib 65	450–585 [65–85]	Ntau dua lossis sib npaug li 240 [Ntau dua lossis sib npaug rau 35]	19	23
Qib 70	485–620 [70–90]	Ntau dua lossis sib npaug li 260 [Ntau dua lossis sib npaug rau 38]	17	21

Tej kev siv

Chav boilers
Cov hlab ntsha siab
Kub exchangers
Siab cia tanks
Petrochemical reactors
Cov txheej txheem kev lag luam khoom siv

Kev Pabcuam

CNC nplaim taws txiav- Precision txiav rau lub nkoj siab loj.

Plasma Txiav- Haum rau nruab nrab - cov phaj tuab nrog cov npoo huv.

Laser Txiav- Siab- ua kom raug rau cov phaj nyias nyias.

Beveling- Vuam ntug npaj raws li fabrication drawings.

Drilling- Lub qhov machining rau flange thiab cov qauv kev sib txuas.

Milling & Machining- Precision machining ntawm qhov loj me.

Phaj Leveling- Txhim kho flatness ua ntej fabrication.

Tua Blasting & Primer Painting- Nto npaj rau kev tiv thaiv corrosion thaum thauj.

Quality Assurance

Kev tshuaj xyuas

Raw khoom chemical muaj pes tsawg leeg txheeb xyuas
Steelmaking txheej txheem traceability tshuaj xyuas
Phaj dimension soj ntsuam
Thickness kam rau ua ntsuas
Surface defect tshuaj xyuas
Kev ntsuam xyuas lub zog tensile
Yield zog kuaj
Kev ntsuas elongation
Kev ntsuam xyuas cuam tshuam (thaum teev tseg)
Kev kuaj ultrasonic (UT)
Hardness testing (raws li kev thov)
Mill Test Certificate (MTC) pov thawj ua ntej xa zaub mov

A515/A515M Standard Specification for Pressure Vessel Plates, Carbon Steel, for Intermediate- and Higher-Temperature Service

Cov ntawv pov thawj

Daim ntawv pov thawj	Lub ntsiab lus
ISO 9001: 2000 ntawv pov thawj	Quality Management System
ISO 14001: 2004 Daim ntawv pov thawj	Environmental Management System
EN 10204 3.1	Cov Khoom Siv Tshuaj Ntsuam Xyuas Daim Ntawv Pov Thawj muab los ntawm cov chaw tsim khoom
EN 10204 3.2	Thib peb -tog pov thawj daim ntawv pov thawj
PEB 2014/68/EU	Cov Khoom Siv Siab Cov Lus Qhia Ua raws li European lag luam
ASTM A515 / ASME SA515	Siab lub nkoj phaj manufacturing txuj

China pressure vessel steel manufacturer

China pressure vessel plate Manufacturers

China pressure vessel steel Distributors

China boiler quality plates Distributors

High Temperature Pressure Vessels Steel Plate

China pressure vessel quality steel Distributors

Ntim & Shipping

Export Ntim- Cov ntawv hlau tau ntim nrog cov hlua hlau thiab cim nrog cov xov tooj cua sov thiab cov ntawv qhia tshwj xeeb.

Tiv thaiv xeb- Pem teb liab qab, tiv thaiv -cov roj xeb, lossis khw muag khoom primer txheej muaj raws li qhov kev thov.

Loading Method- Loaded los ntawm crane nrog nylon slings los tiv thaiv ntug kev puas tsuaj.

Shipping Method- Lub thawv ntim khoom, lub nkoj loj, tawg ntau lub nkoj, lossis cov khib nyiab tiaj tus raws li phaj qhov ntev.

FAQ

Q: ASTM A515 piv nrog ASTM A516 li cas?

A: ASTM A515 yog npaj rau nruab nrab thiab nce siab -kub siab lub nkoj kev pabcuam, thaum ASTM A516 feem ntau xaiv rau cov ntawv thov kub nruab nrab thiab qis dua.

Q: Peb puas tuaj yeem kuaj xyuas ob tog ua ntej xa khoom?

A: Yog. SGS, BV, TÜV, LR, DNV, ABS thiab lwm lub koom haum tshuaj xyuas tuaj yeem npaj tau raws li qhov kev thov.

Q: Cov qib sib txawv thiab qhov ntau thiab tsawg tuaj yeem thauj khoom hauv ib lub thawv?

A: Yog. Kev sib xyaw ntawm cov qib sib txawv, qhov ntev, thiab cov ntawv ua tiav yog muaj los ua kom zoo dua cov nqi thauj khoom.

Q: Qhov twg Incoterms koj txhawb?

A: EXW, FOB, CFR, CIF, CPT, CIP, DAP, DDP, thiab lwm yam kev sib tham Incoterms.

Q: Cov chaw nres nkoj twg koj feem ntau xa nkoj los ntawm?

A: Cov chaw nres nkoj xa tawm tseem ceeb suav nrog Qingdao, Tianjin, thiab Shanghai, nyob ntawm qhov chaw tsim khoom thiab lub sijhawm teem caij nkoj.

Q: Koj puas khaws ASTM A515 daim hlau hauv Tshuag?

A: Yog. Cov tuab tuab thiab cov qauv phaj loj yog ib txwm muaj rau kev xa khoom sai, raws li cov khoom muag.

Q: Cov khoom sib npaug twg muaj rau ASTM A515?

A: Cov khoom sib npaug xws li ASME SA515, thaum xaiv cov khoom sib npaug rau EN, JIS, lossis GB qauv tuaj yeem pom zoo raws li qhov project specifications.
